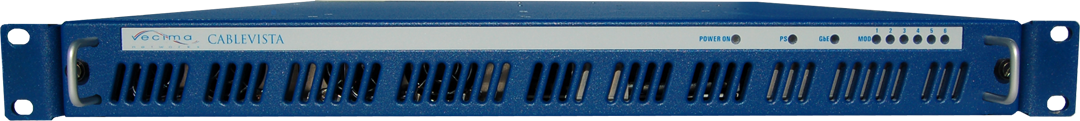

The CableVista IP to Analog Edge Decoder performs MPEG decoding, modulation and upconversion for up to 24 NTSC or 12 PAL channels in a compact 1 RU chassis. The CableVista supports a variety of output card types in the same chassis including: Baseband NTSC/PAL, RF NTSC/PAL, RF NTSC with Off Air Reference and MPEG MPTS Pass Through to ITU J.83 Annex B QAM (64/256) RF. The CableVista provides customers with the highest degree of flexibility available. With numerous redundancy features, hot-swappable components and flexible software, the CableVista is the key element in today’s Digital Simulcast network.

cablevista

Product

FEATURES

  • Multiple output card types available:
    • MPEG to Base Band (NTSC or PAL)
    • MPEG to RF Channels (NTSC or PAL)
  • EAS support as per SCTE 18 (NTSC output cards only)
  • VITS insertion (NTSC output cards only)
  • Modular chassis fits up to 6 output cards and can provide:
    • Up to 12 Base Band channels decoded in 1RU
    • Up to 24 RF channels decoded in 1RU
    • Mixing output cards of different types in a single chassis is also possible
  • GbE Redundancy
  • ASI Inputs
  • Output module redundancy
  • GbE or ASI daisy chaining of several CableVista units possible
  • All modules and power supplies are hot-swappable
  • IGMPv3 support
  • Configuration and control via Web page interface (Configuration and control also available though RS232 or SNMP)
  • Field upgradable firmware to incorporate new features
  • Auto configurable on start up via DHCP
  • Remote logging
