The Entra Access Switch is a remote cloud managed, 8 port x 10 GbE weatherproof switch capable of supporting Carrier Ethernet services in almost any deployment environment. It is designed to extend the capacity of networks with insufficient fibers while minimizing the use of expensive DWDM optics. Capital expenditure costs are significantly reduced for: short run fiber extension, deep fiber deployments and R-OLT for PON. Metro Ethernet support allows for deployment at business parks, while full support for IEEE 1588 and SyncE timing provides capability for mobile network backhaul and as well as DOCSIS 3.1 distributed access aggregation. The Entra Access Switch will ensure maximum ROI from your existing short and long range fiber links.

Entra Access Switch

Use Cases

  • Aggregation
    • Long haul DWDM SFP+ transport to multiple Short Range commodity optics
    • Capacity – Share 10 Gbps connection(s) across multiple 1 Gbps connections
    • DOCSIS 3.1 Distributed Access nodes (R-PHY / R-MACPHY)
  • Mobile Network Backhaul – Link and backhaul multiple cell towers requiring synchronization (1588v2 or SyncE)
  • Remote 10G-EPON OLT – Supports R-OLT modules for PON deployments
  • Support Business Services

Networking Features

  • 8 x SFP+ dual 10/1G interfaces
  • Up to 80 Gbps bidirectional
  • L2/L3-aware Switching
  • VLAN, QINQ, MSTP, LACP, ACLs, IGMP snooping
  • Maintenance – EFM, CFM, LLDP, and Y.1731 *
  • IEEE 1588v2 and G.8261 compliant SyncE support
  • Security – 802.1X port authentication
  • Link Protection – 802.3ad LAG, G.8031/8032
  • Entra Unified Controller for management of Access Switches

* Y.1731 currently under development and will be included in the next software release

Deployment Features

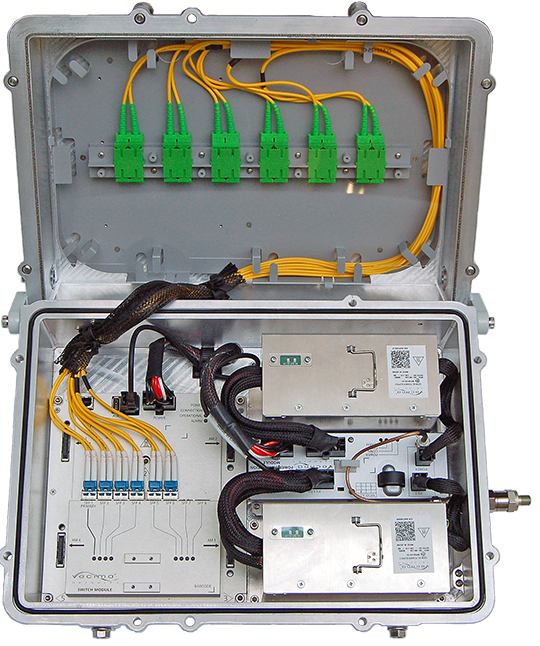

  • Outdoor hardened multiport 10 GbE switch
  • Large fiber tray with generous support for optical couplers, splice holders, inline or cassette-style DWDM mux/demux
  • Multiple power options – Single Port (F-Type & RG-6)
    • 60/90 VAC line tap
    • Standard AC 90-260 VAC
  • Future 10G-EPON OLT integration support
  • Mounting options for strand, pedestal or wall
  • Dimensions
    • 18”(46 cm) x 11.5” (29cm) x 6.75” (17cm)
  • 2 Fiber Entry Ports
