QAM & IP to Analog RF

Terrace Logo

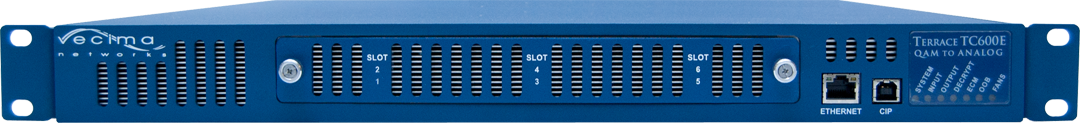

The Terrace TC600E MDU gateway is a multi-channel digital to analog RF converter with support for MPEG-2 and MPEG-4 AVC / H.264 content from QAM and IP(1) sources. The TC600E accepts any combination of up to 36 QAM channels and up to 36 Multicast or Unicast IP(1) streams up to a maximum total input bitrate of 940 Mbps. Up to 36 programs sourced from the QAM inputs can be decrypted using 6 Multi-Stream CableCARDs™. Multicast and Unicast IP streams must not be encrypted. The TC600E can decode up to 36 MPEG-2 HD/SD, 36 MPEG-4 AVC / H.264 SD, or 24 MPEG-4 AVC / H.264 HD programs, and output up to 36 NTSC analog channels. The Terrace TC600E is a flexible, compact and cost effective way to bring a digital lineup back into the analog realm for a commercial or MDU bulk account.

terrace tc600e



  • Highly integrated – Combines QAM demodulation, IP input, decryption, NTSC modulation and RF upconversion
  • Supports MPEG-2 and MPEG-4 AVC / H.264 video decoding
  • Demodulate up to 36 QAM channels
  • Receive up to 36 IP streams
  • Output up to 36 channels from any combination of QAM and/or IP inputs
  • Convert up to 36 MPEG-2 HD/SD, 36 MPEG-4 AVC / H.264 SD, or 24 MPEG-4 AVC / H.264 HD programs to analog channels
  • Supports up to 6 Multi-Stream CableCARDs to decrypt up to 36 QAM streams
  • SCTE-18 Force Tune EAS Support
  • SCTE-20,21 Closed Captioning / VBI support
  • Integrated DOCSIS 3.0 cable modem
  • Supports OOB-SI (VCN or Source ID) and QAM Static Mappings
  • Supports IPv4 and IPv6 on Ethernet Management Port
  • Supports unencrypted Unicast and Multicast IP Input
  • Scalable – Generate up to 90 contiguous channels with 3 co-located units
  • Compatible with HITS QT+
  • Compact 1RU design saves space and power
  • Compatible with Terrace View for Global Monitoring

NOTE: Multi-channel CableCARDs are not included with unit

(1)The IP Input (Ethernet Media Port) functionality requires Release 6.x firmware.

CableCARD is a trademark of Cable Television Laboratories, Inc.
