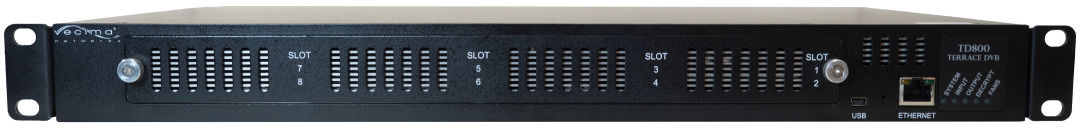

The Terrace DVB Commercial Video Gateway is a multi-channel DVB-C (QAM) to DVB-T (COFDM) or DVB-C (QAM) decrypting transmodulator used for business to business commercial video applications. Demodulated MPEG transport streams are decrypted by DVB CAM technology and then re-modulated to the desired DVB‑T/C channel.

The Terrace DVB can decrypt using 8 DVB CAMs and provides up to 8 DVB-T/C RF output channels to allow a full line-up of customized programming.

Terrace DVB

Product

FEATURES

  • Provide commercial grade HD programming for business to business commercial video applications in Hospitality, Hospitals and MDUs from CATV source
  • Eliminates the need for in-room set-top boxes
  • Highly integrated – Combines QAM demodulation, decryption, demultiplexing, multiplexing, DVB-T/C modulation and upconversion in a single 1RU product
  • Demodulate up to 16 DVB-C (J.83 Annex A) QAM input channels
  • Supports multi service decryption with DVB Professional CAMs
  • Supports up to 8 DVB CAMs to decrypt up to 80 programs
  • Flexibility – Off er both SD and HD programming in the same chassis
  • 8 DVB-T/C RF output channels
  • Supports DVB tables for Virtual Channel Numbers
  • EIT regeneration for guide data
  • Ethernet for remote confi guration and management
  • Supports pass through of MPEG-2 and MPEG-4 video
  • Create a unique Free to Guest Broadcast lineup for business to business commercial video services

NOTE: DVB Professional CAMs are not included with unit
